Real-world robot benchmark for manipulation policies

ATOM-Bench

A real-world benchmark for atomic skills and compositional generalization in manipulation policies.

ATOM-Bench factorizes tabletop manipulation into motor atoms and instruction atoms, then tests whether policies fine-tuned on atomic tasks can recombine those skills on held-out real-robot compositions across paired single-arm and dual-arm tracks.

arXiv Paper Download Dataset Video Examples
30atomic real-robot tasks
24held-out compositional tasks
3,000human teleoperation demos
2,700physical evaluation rollouts
2paired robot tracks
5representative policies

Overview

From atomic fine-tuning to held-out composition.

Policies are adapted with demonstrations from atomic tasks only. Evaluation then measures two surfaces: skill acquisition on the same atomic factors, and compositional reuse on tasks whose structures were not demonstrated during fine-tuning.

Benchmark overview: motor and instruction atoms define the adaptation set, while held-out single-arm and dual-arm compositions probe real-robot generalization.

Task Factorization

Atomic skills are separated from compositional task structure.

Each platform contains a Motor Set, an Instruction Set, and a Composition Set. The paired single-arm and dual-arm suites share task intent, while the dual-arm track adds role assignment, inter-arm coordination, and ordered action sequences.

Motor atoms

pick place reorient push stack pour access

Instruction atoms

color shape size count exclusion source relation goal destination
Motor Set

Isolates one physical operation at a time, including precise pose control, non-prehensile movement, stacking, pouring, and articulated-object access.

Instruction Set

Tests one language constraint under a simple carrier action, covering object attributes, spatial references, counting, logical filtering, and destination binding.

Composition Set

Holds out tasks that combine one or more motor atoms with multiple instruction atoms, exposing whether learned atoms transfer beyond their training templates.

Platforms

Paired real-world tracks for single-arm and dual-arm manipulation.

ATOM-Bench uses matched task designs on Franka Panda and Agilex Cobot Magic. Each task is evaluated with shared physical seeds and three RGB camera views.

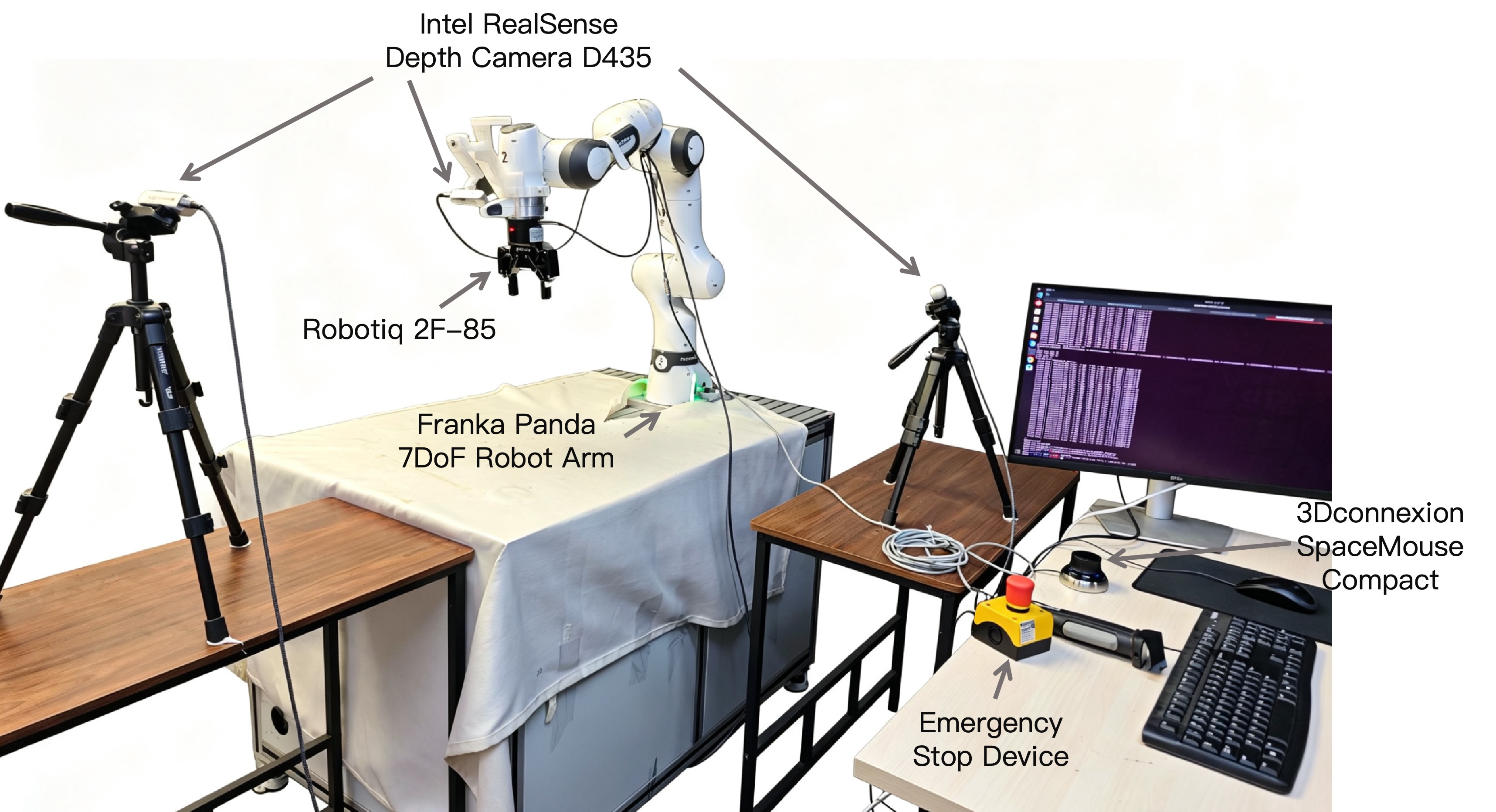

Franka Panda data collection platform with cameras and teleoperation device.

Franka Panda

Single-arm track with a 7-DoF Franka Panda arm, Robotiq 2F-85 gripper, three Intel RealSense views, and 8-D robot actions.

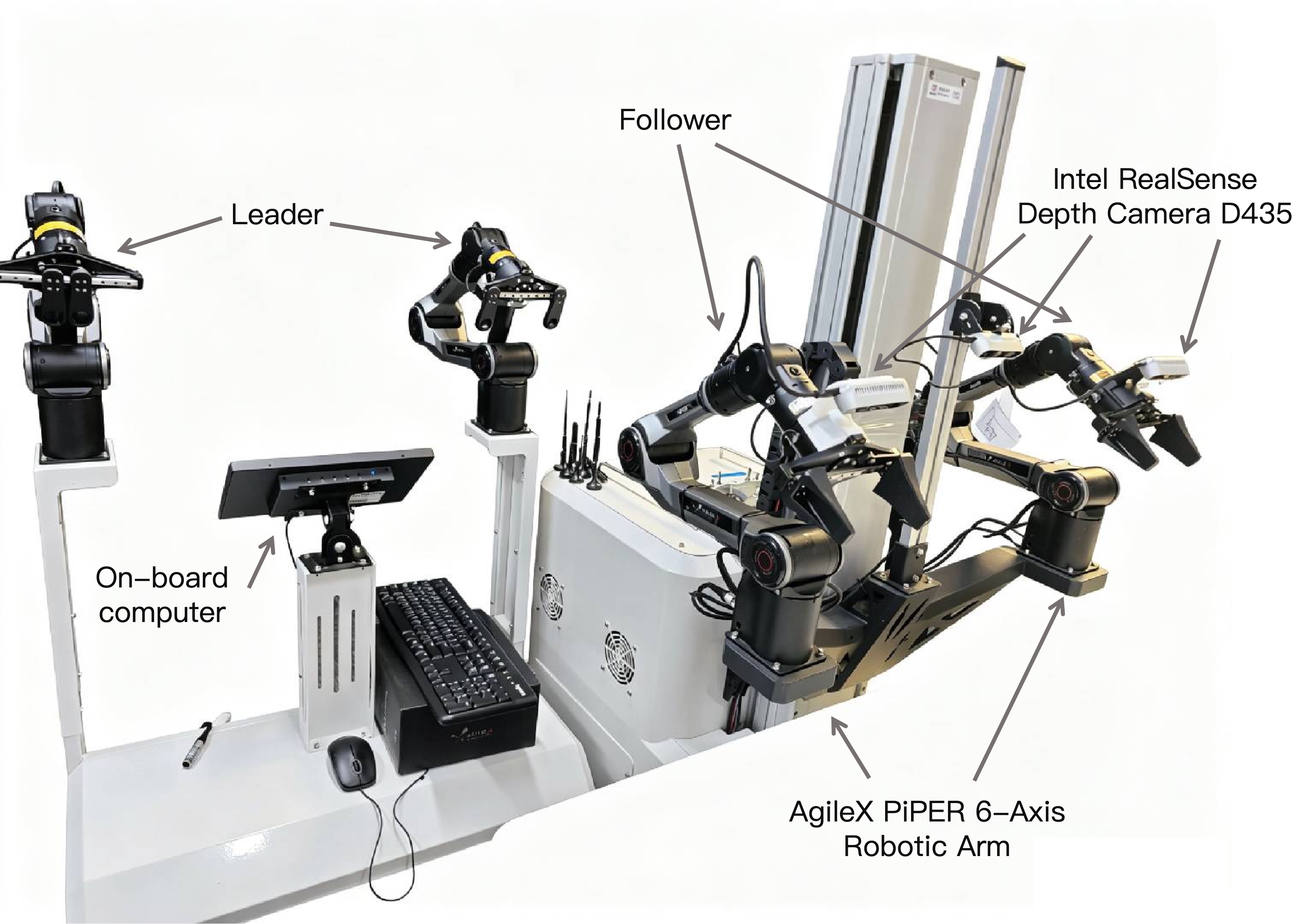

Agilex Cobot Magic dual-arm data collection platform.

Agilex Cobot Magic

Dual-arm track built on a Mobile ALOHA-style system, with coordinated bimanual control, three Intel RealSense views, and 14-D robot actions.

Evaluation Protocol

Diagnose whether failures come from weak atoms or weak composition.

The protocol controls the adaptation distribution, evaluates every task with shared physical seeds, and reports process-aware metrics for both atomic execution and compositional reuse.

1

Collect atomic demos

Each atomic task receives 100 expert teleoperation demonstrations recorded at 30 Hz.

2

Fine-tune policies

Models are jointly fine-tuned on all 15 atomic tasks per platform, with no composition demos.

3

Evaluate physical seeds

Every task is evaluated over 10 fixed real-world seeds reproduced by mask-guided placement.

4

Report diagnostic metrics

SR, PSR, AS, CFS, and TG separate task completion, partial progress, and composition failures.

Results

Strong atomic performance does not guarantee held-out composition.

Across five representative policies, simple instruction grounding is often easier than fine-grained motor control. Even the strongest atomic performers show sharp drops on held-out compositions.

Atomic Skill Acquisition

Mean SR and PSR over the Motor and Instruction Sets, with a compact per-atom view for motor and instruction skills.

Franka Panda Cobot Magic
Model Motor SR Motor PSR Instr. SR Instr. PSR Motor SR Motor PSR Instr. SR Instr. PSR
Pi0.5 46.2 56.2 94.3 95.7 45.0 72.0 71.4 83.2
Motus 36.2 46.2 67.1 78.7 35.0 59.3 50.0 67.5
LingBot-VLA 37.5 46.5 54.3 60.5 26.2 42.8 21.4 47.1
GROOT N1.6 28.8 47.1 57.1 69.5 23.8 41.0 27.1 52.1
SmolVLA 17.5 29.8 11.4 31.2 10.0 32.2 5.7 29.3

Atomic-to-Compositional Transfer

Held-out composition performance compared with the atomic-baseline ceiling, plus the paired-task transfer gap for Pi0.5.

Franka Panda Cobot Magic
Model SR PSR AS CFS SR PSR AS CFS
Pi0.5 15.8 30.4 83.3 73.7 16.7 42.6 79.5 56.8
Motus 10.8 26.5 69.3 49.4 7.5 31.5 68.5 48.3
LingBot-VLA 3.3 12.1 60.3 54.5 0.0 24.4 47.2 29.3
GROOT N1.6 3.3 11.6 66.3 61.2 1.7 13.7 48.2 38.8
SmolVLA 0.0 6.6 33.3 28.3 0.0 6.3 32.5 27.3

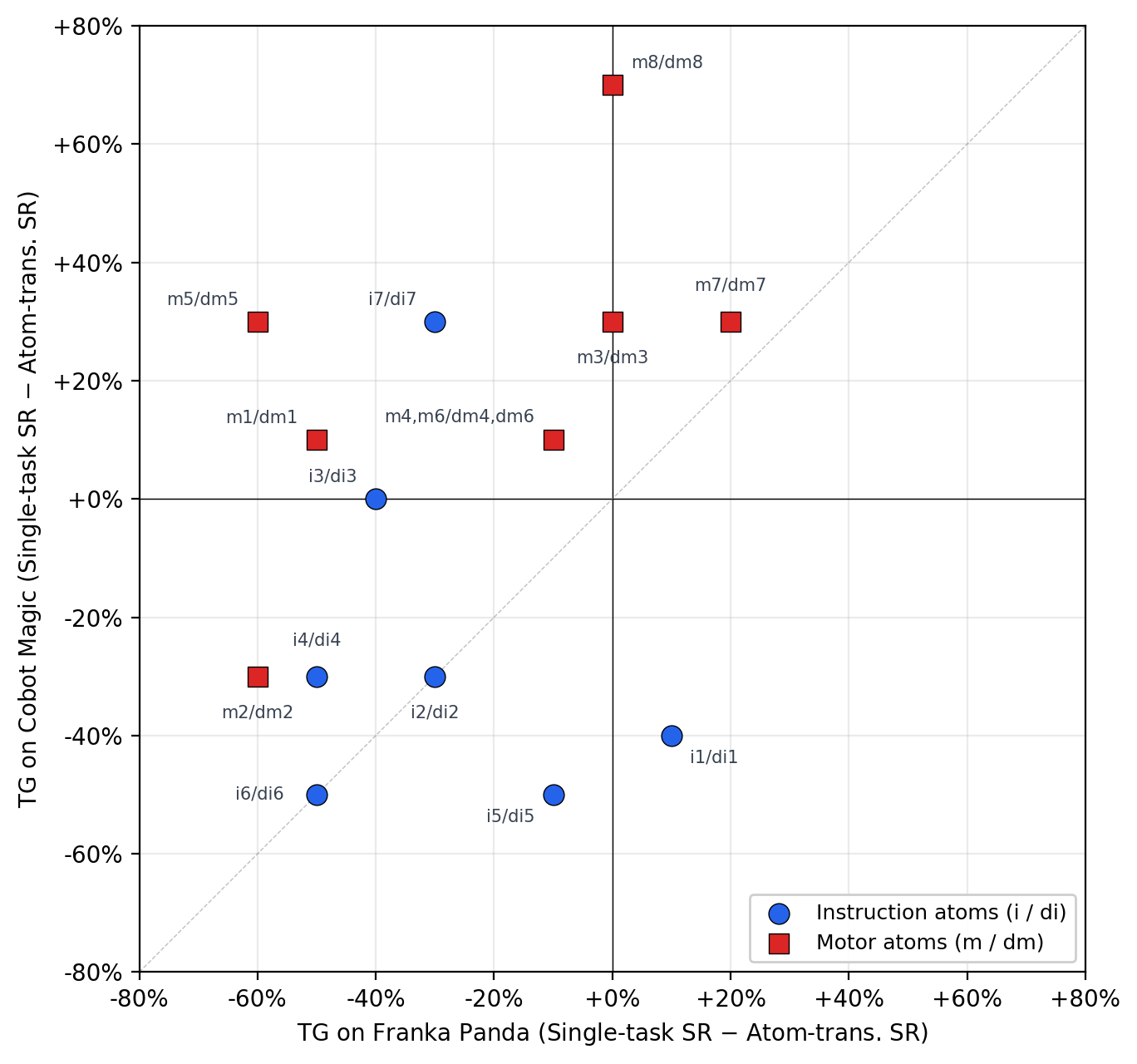

Transfer Gap on paired atomic tasks of Pi0.5.
Transfer Gap on paired atomic tasks of Pi0.5.
Example ATOM-Bench failure modes from robot rollouts.
Failure cases reveal distinct sources of error, including correct object selection with failed execution and wrong object selection under compositional references.

Videos

Rollout video examples.

Browse success and failure rollouts. Each card parses the model and task id from its filename, then keeps the corresponding task prompt visible below the video.

Success rollouts

Failure rollouts
